Next-Gen Ford Ranger – Wildtrak

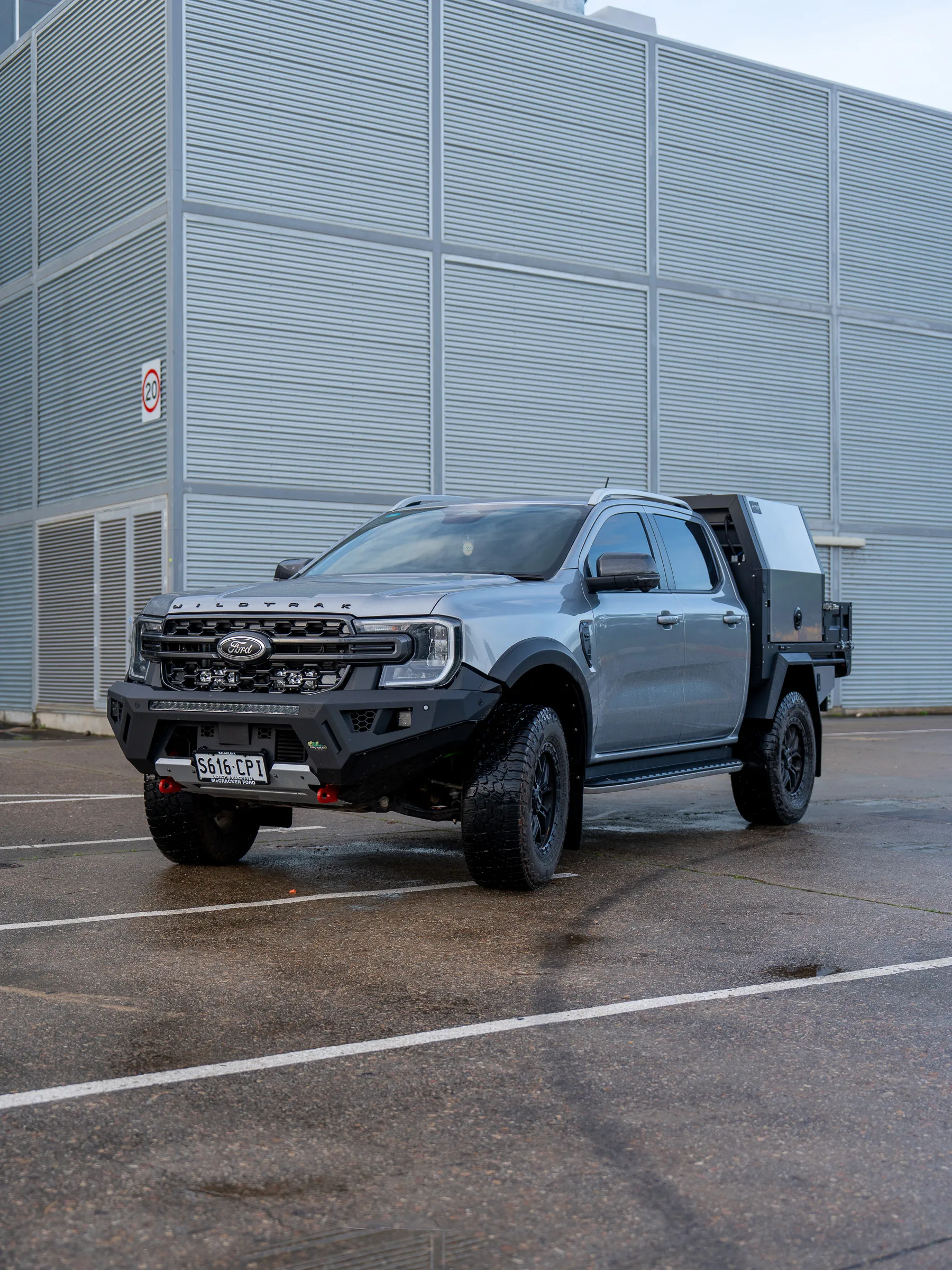

This Next-Gen Ford Ranger Wildtrak strikes a tidy balance between secure storage and usable tray space. The setup combines our 1600mm aluminium tray with a compact 1050mm lift-off canopy, leaving room at the rear for carrying bulky gear when needed.

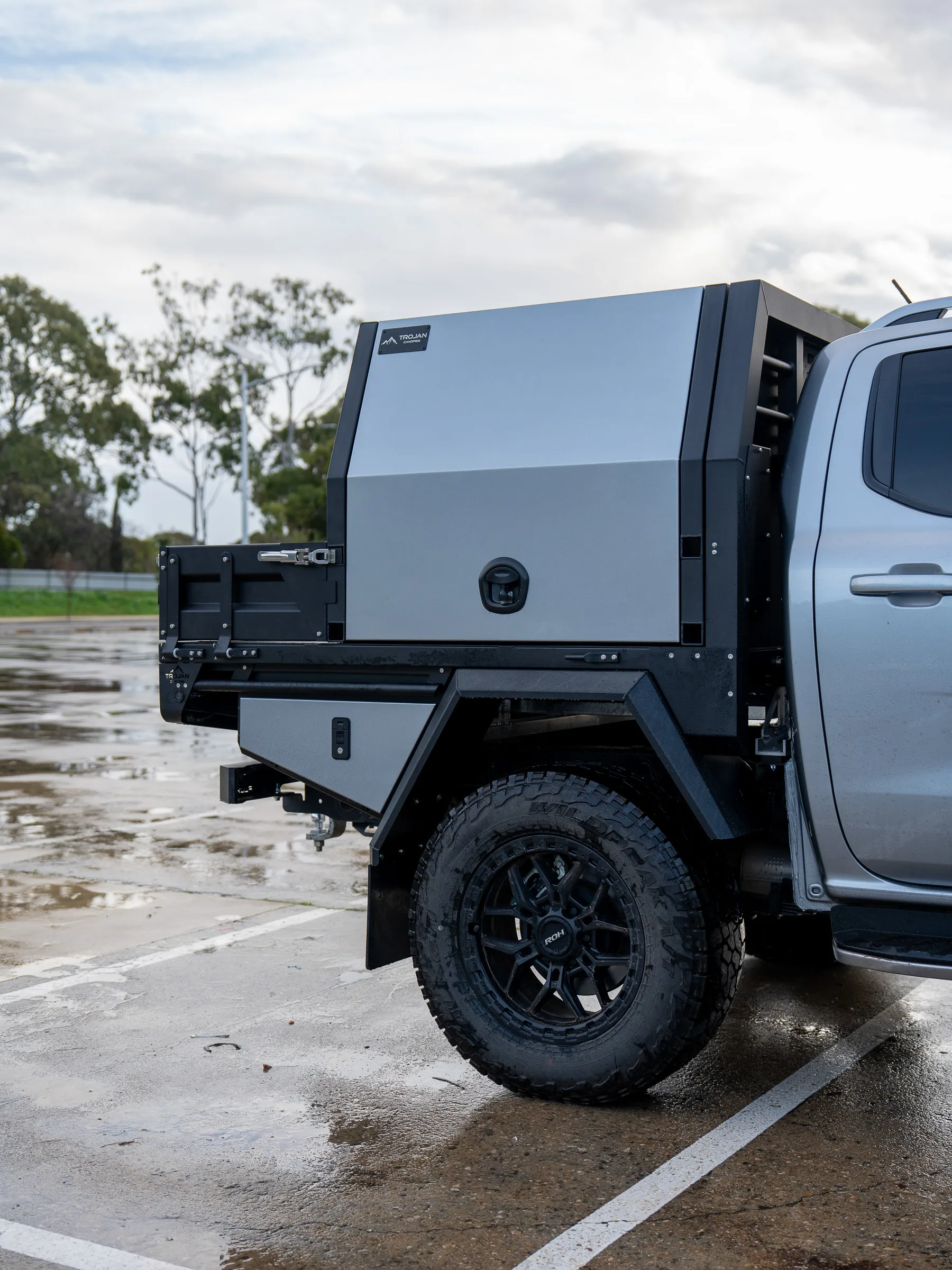

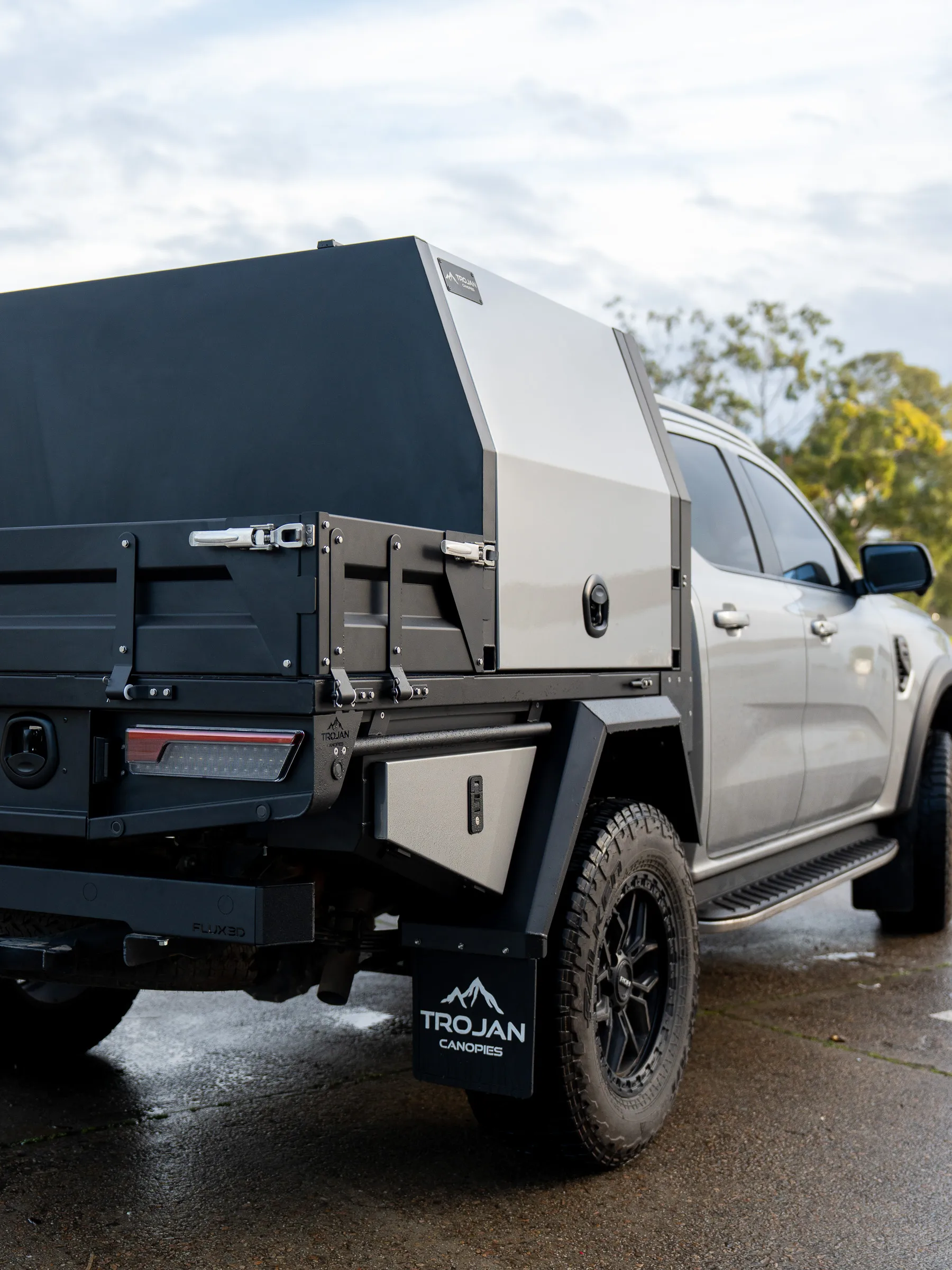

Colour-coded canopy doors and underbody toolbox panels help the package blend neatly with the Ranger’s silver bodywork. Shortened tray sides complete the clean look while keeping the open section of the tray practical and easy to access.

The setup

1600mm aluminium tray

• Lightweight aluminium construction
• Durable black powder-coated finish
• Shortened removable tray sides
• Full-length trundle drawer with gas-strut-assisted lid
• Colour-coded underbody toolboxes
• Folded aluminium wheel arches
• Integrated tie-down points
• LED rear lights
• Camera and sensor relocation provisions
• Trojan Canopies mudflaps

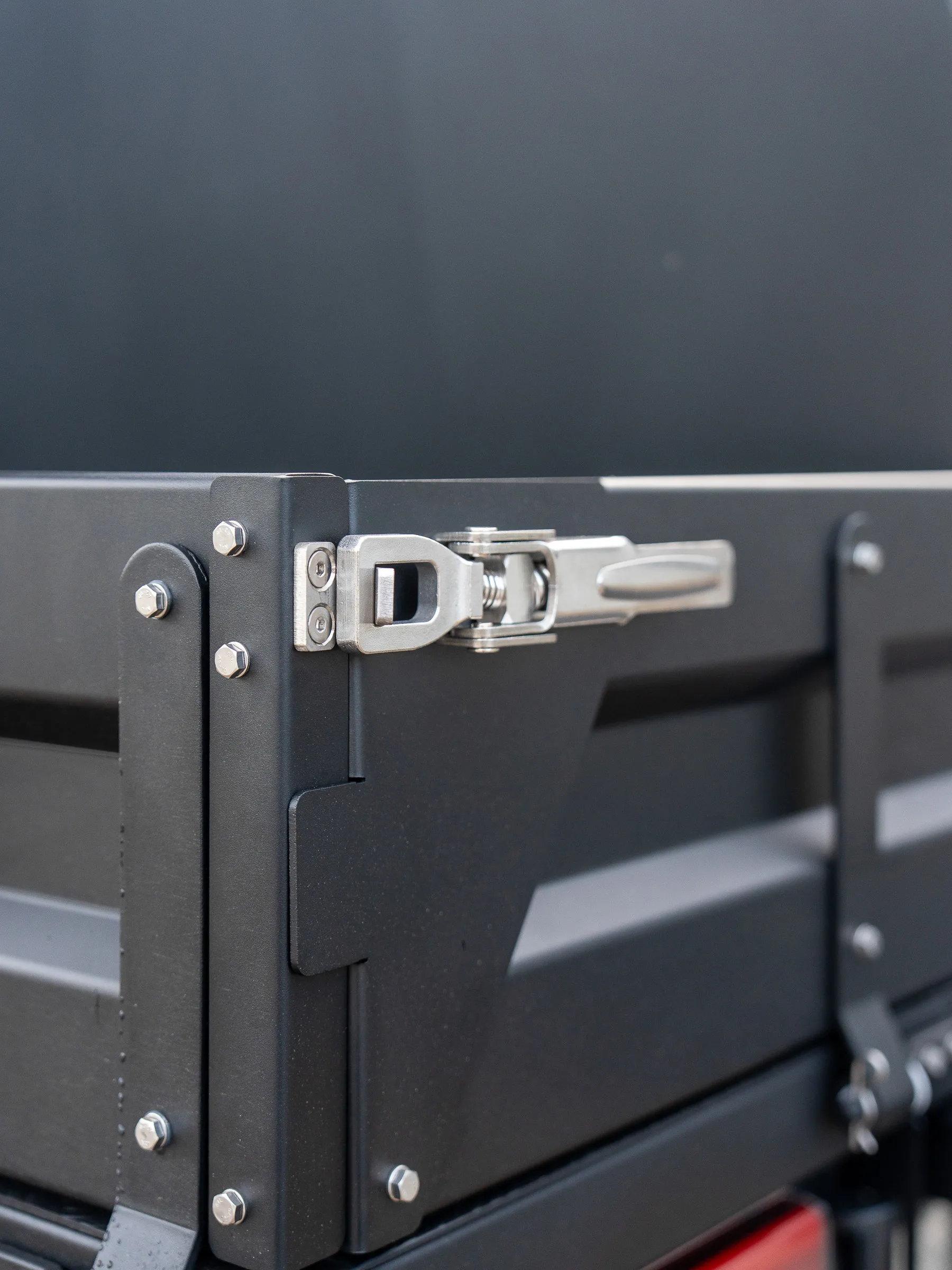

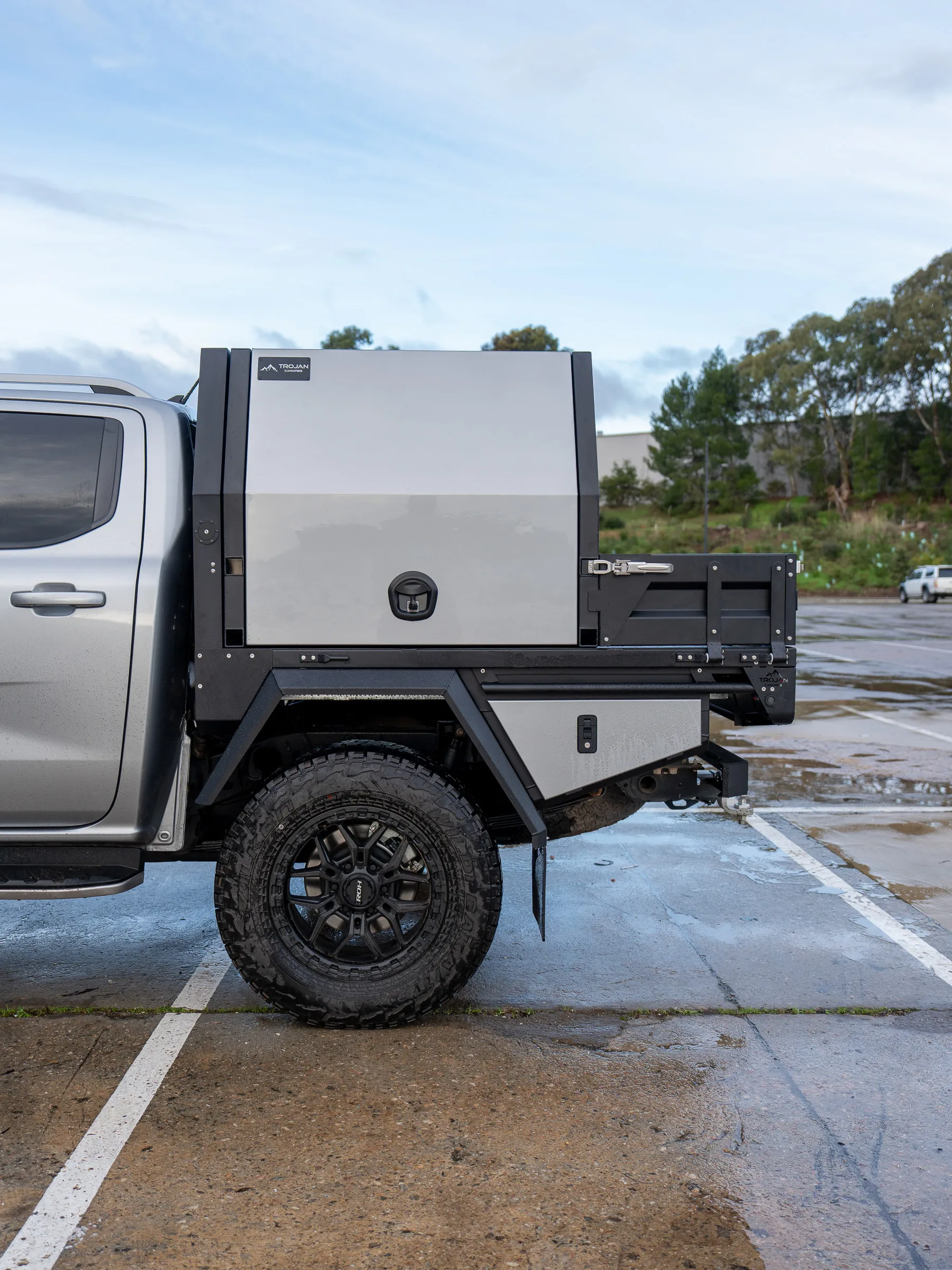

The 1600mm tray keeps the package compact behind the dual cab while still providing a useful open load area. The shortened sides work particularly well with the 1050mm canopy, securing gear at the rear without visually crowding the setup.

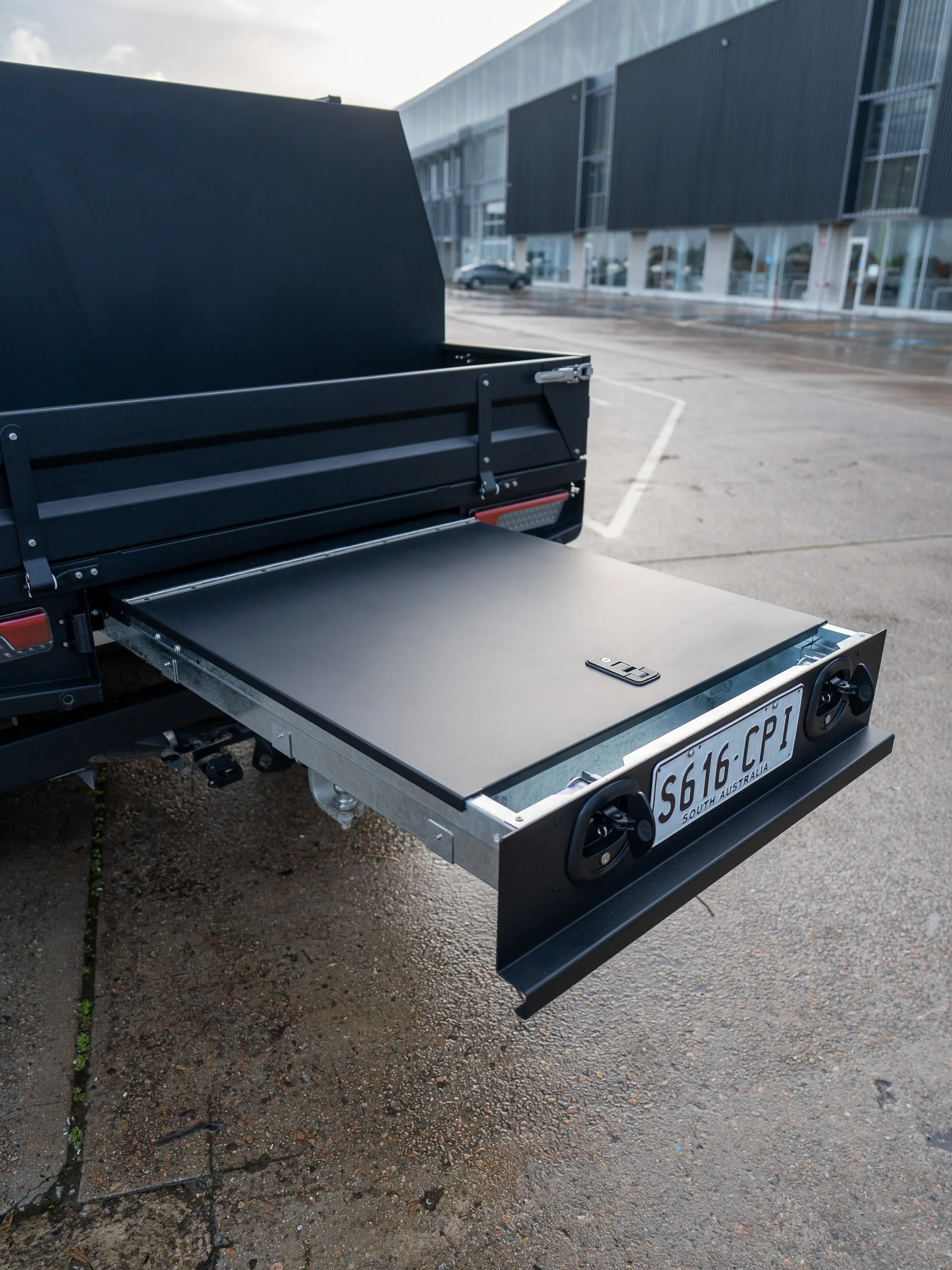

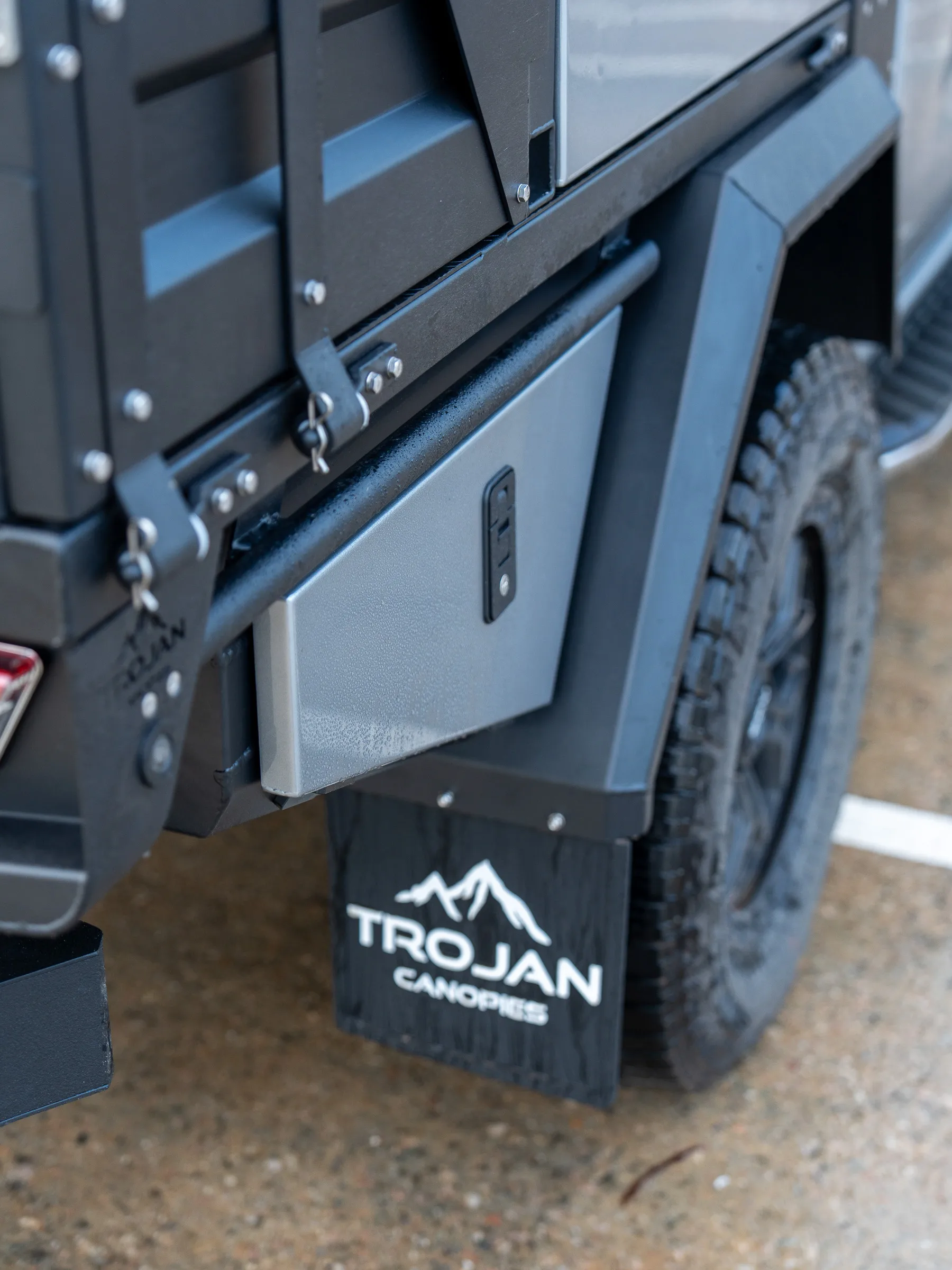

Underneath, the full-length trundle drawer provides storage for longer items and includes a flat lid that can double as a bench. The underbody toolboxes make use of otherwise wasted space and keep smaller equipment accessible from outside the canopy.

1050mm lift-off canopy

• Marine-grade 5052 aluminium construction
• Colour-coded gullwing doors
• Gas-strut-assisted opening
• Whale-tail compression locks
• Pinch-seam rubber seals
• Flush internal floor
• Uni-strut mounting channels
• Powder coating inside and out
• Reinforced roof with accessory channels
• Jack-off mounting points

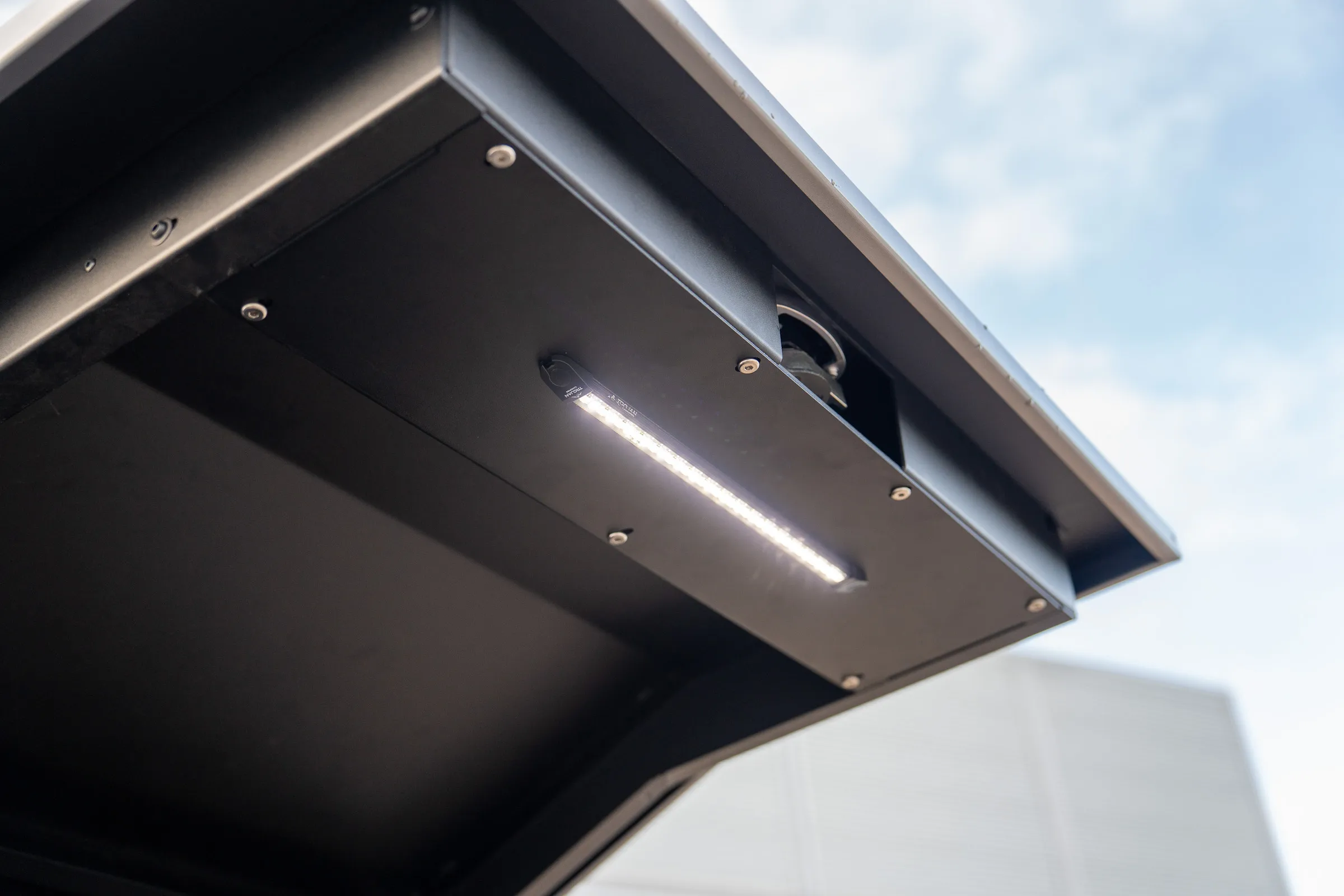

• Door-mounted LED lighting

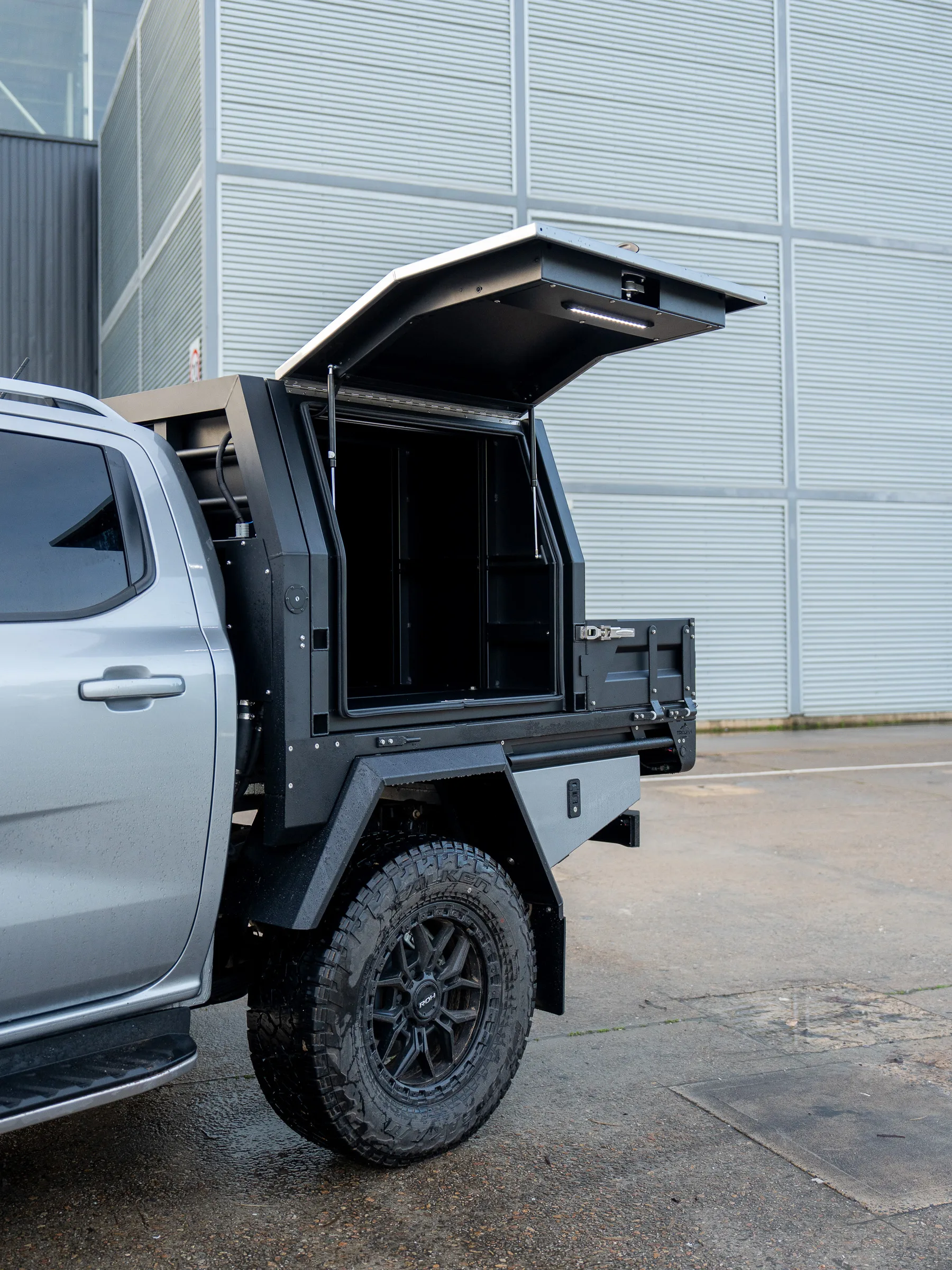

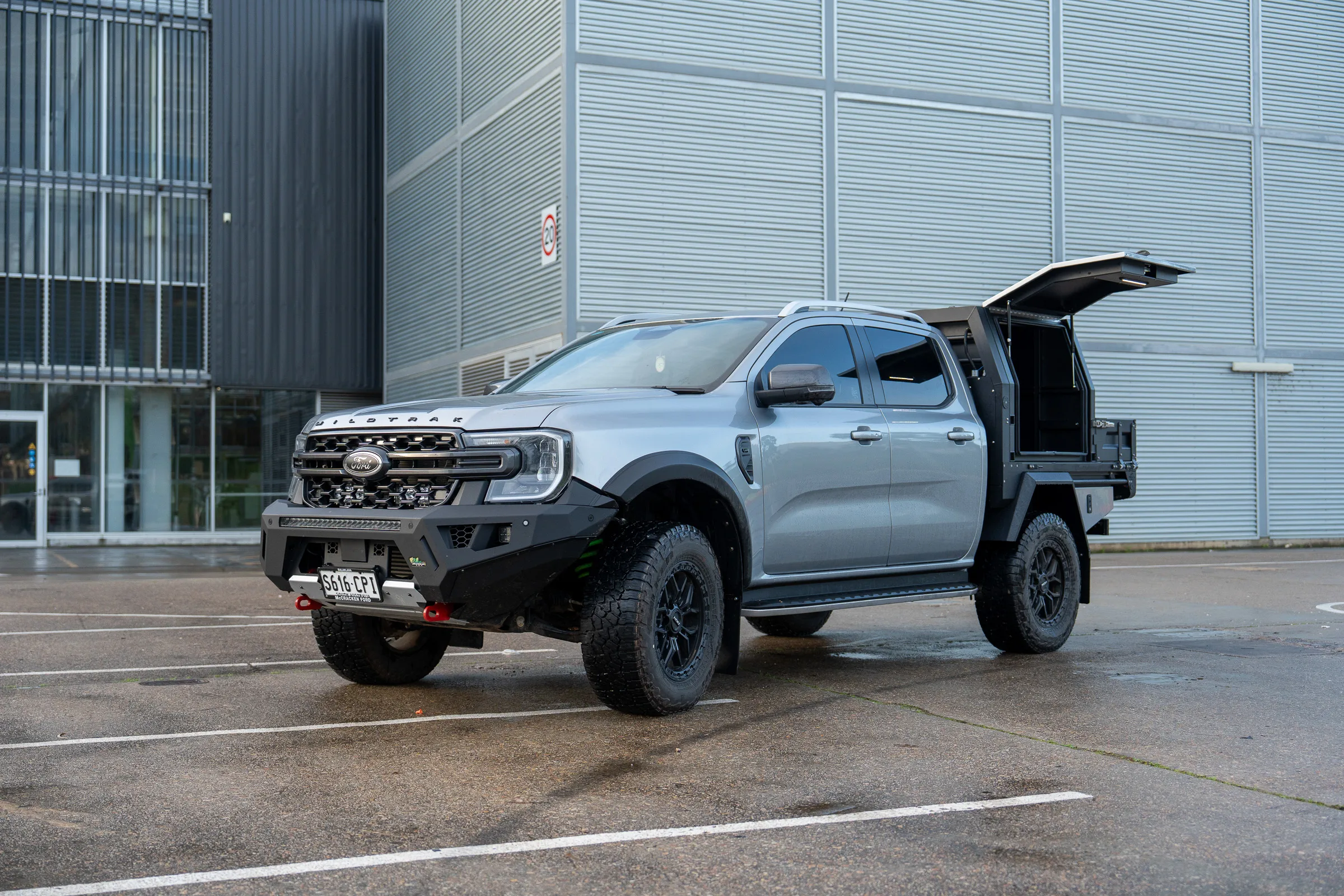

At 1050mm long, the canopy provides secure storage without taking over the entire tray. The open interior leaves the owner free to add drawers, shelving, a fridge or other modular components later.

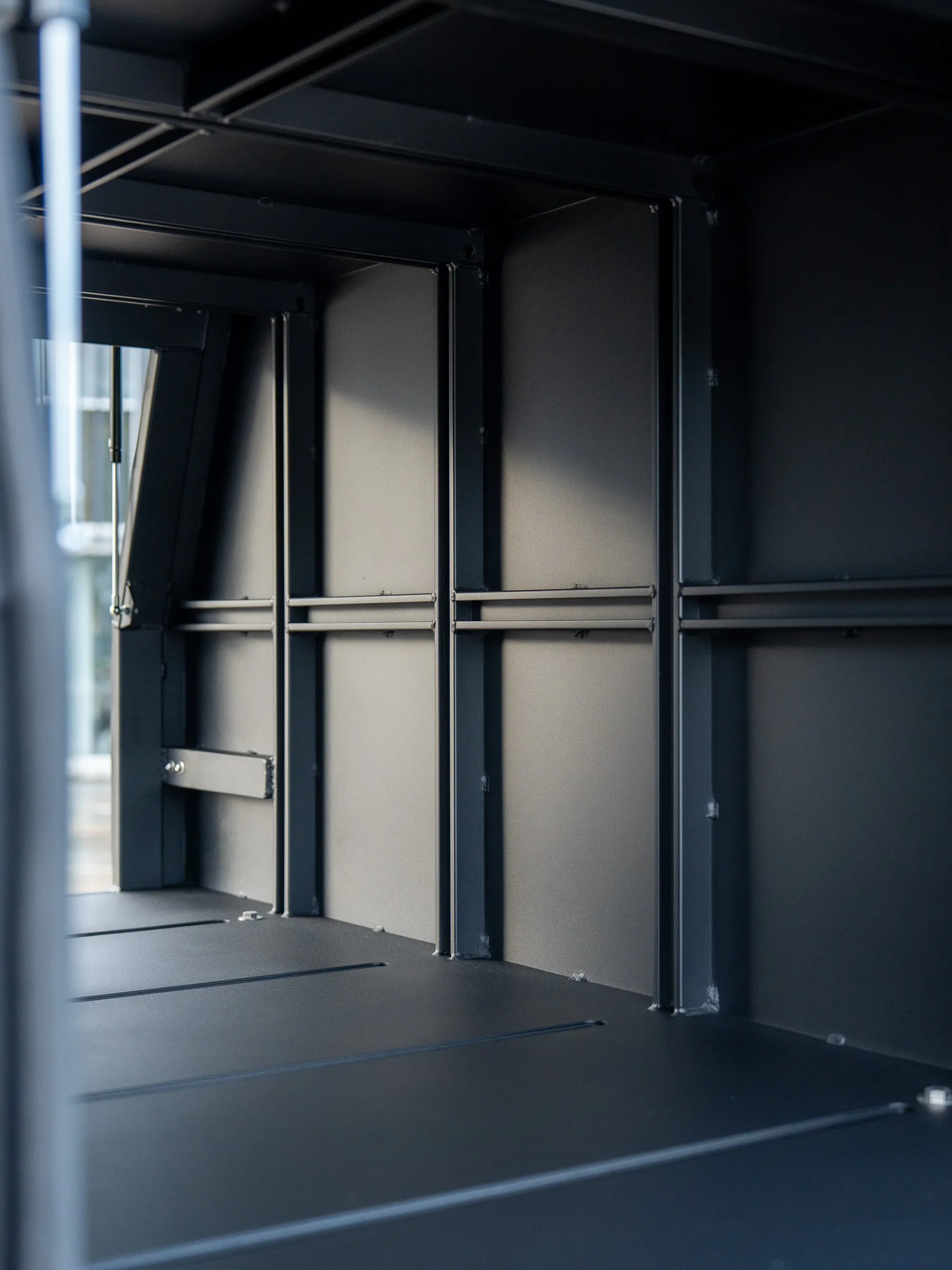

The flush floor makes loading straightforward, while the internal uni-strut channels provide flexible mounting points without drilling through the canopy body.

Weekender 12V package

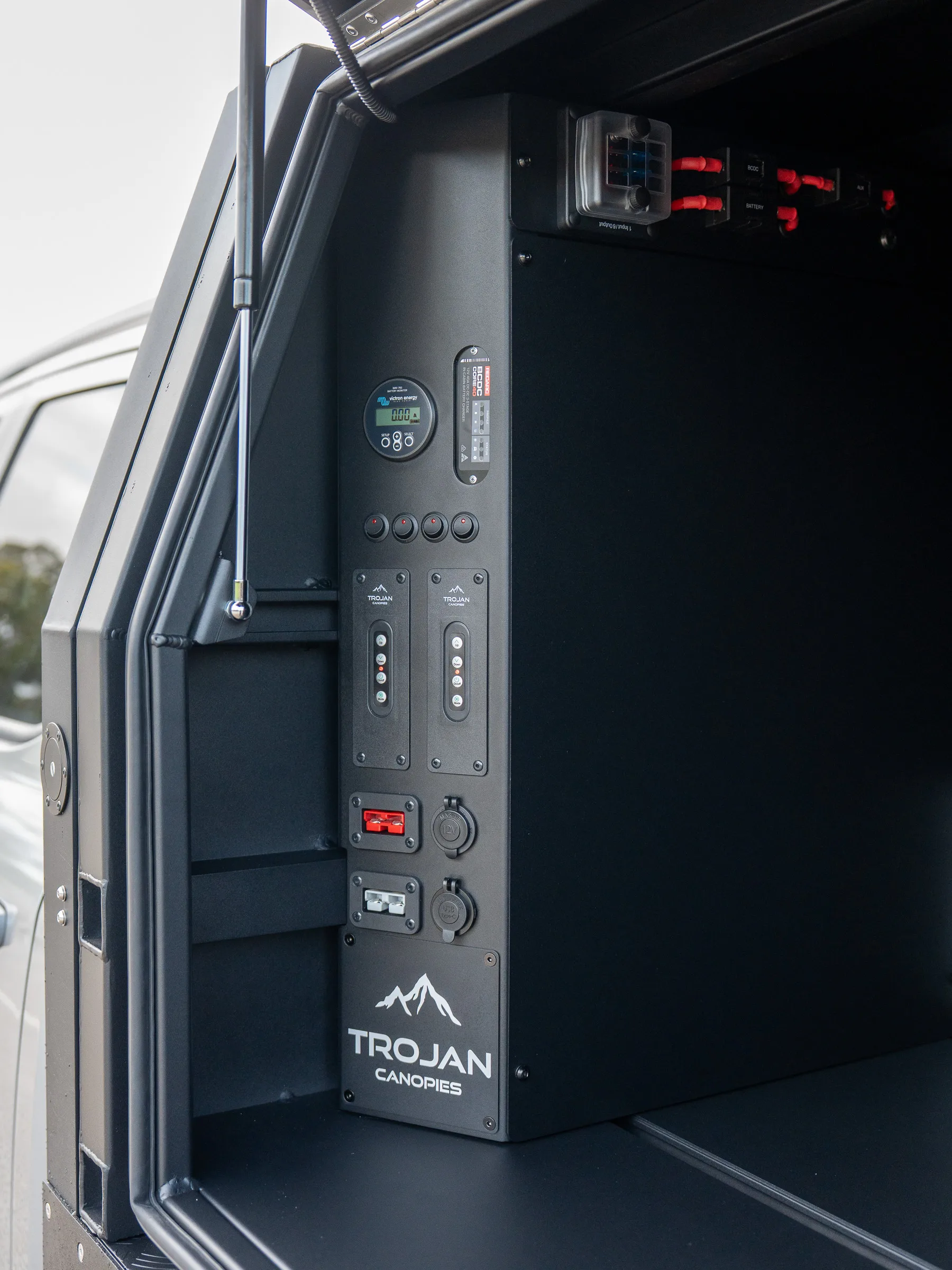

A neatly integrated Weekender 12V panel gives this Ranger the foundations for touring, worksite power and future accessories.

The panel includes a Victron battery monitor, REDARC dual-input DC and solar charger, 12V and USB charging outlets, lighting controls and pre-wired accessory switches. Tri-colour lighting inside the doors and canopy makes the storage area easier to use after dark.

Why this build works

This setup keeps its options open. The 1050mm canopy protects important gear, the shortened sides preserve useful tray space, and the modular interior can evolve as the owner’s needs change.

Add the colour coding and compact 1600mm tray, and the result is a proper all-rounder: clean enough for everyday driving, practical enough for work and ready to be developed into a touring setup.
