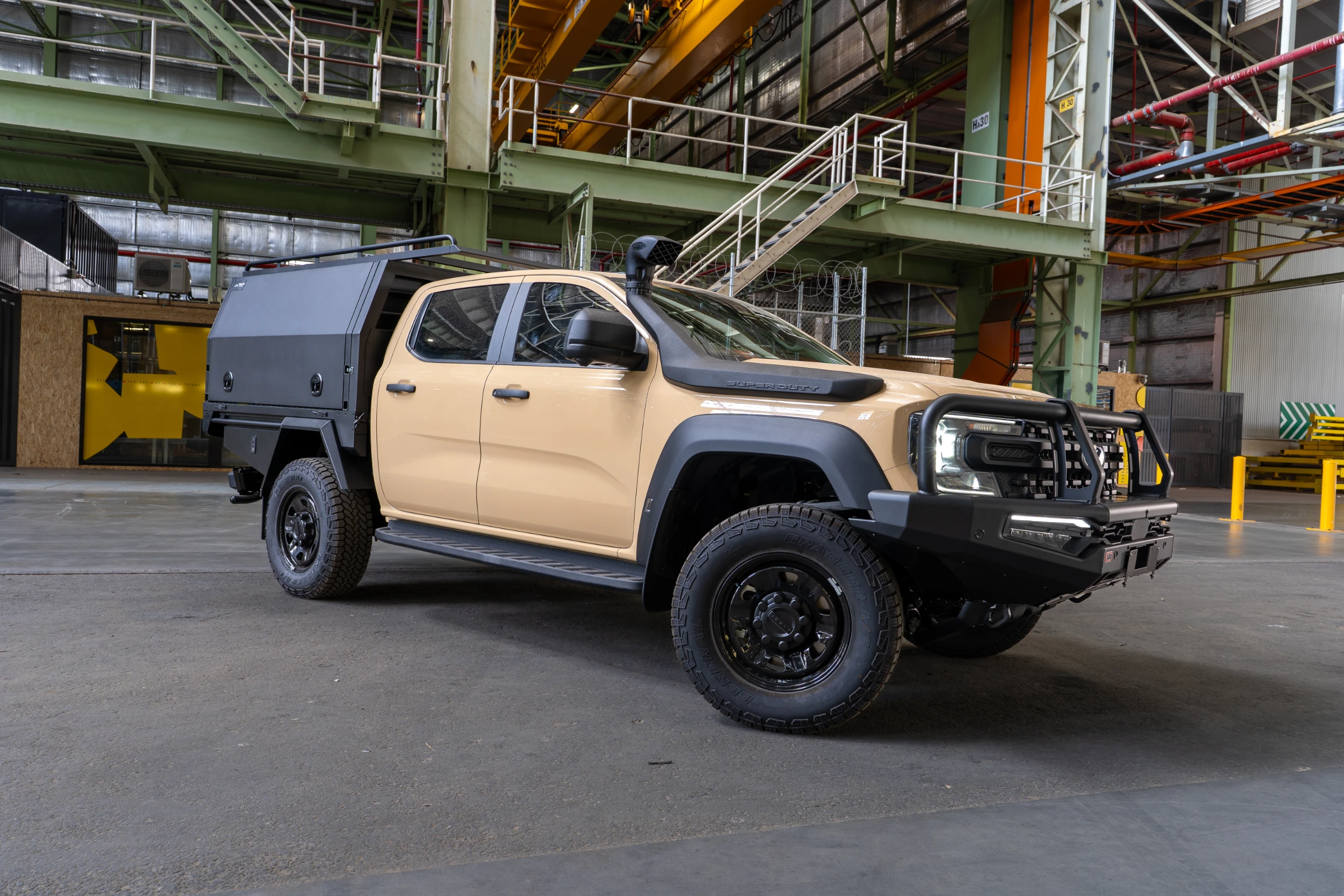

This Ford Ranger Super Duty in Seismic Tan is a perfect example of a tough, no nonsense work and tourer setup done right. Built to match the capability of the Super Duty platform, this tray and canopy package delivers serious strength, smart storage, and clean integration without compromising payload or usability.
The result is a rig that is just as comfortable on the job site as it is heading off grid.
This build features our 1800mm tray and canopy package, designed specifically for the Ford Ranger Super Duty. Every component has been selected to maximise usable space, improve access, and keep weight where it should be.
The Seismic Tan Super Duty pairs exceptionally well with the black powder coated tray and canopy, giving it a sharp, purposeful finish that still looks factory.
At the core of this build is our aluminium tray and full height canopy combination. Built from lightweight aluminium and engineered for the Super Duty chassis, this setup is designed to handle heavy loads without unnecessary bulk.

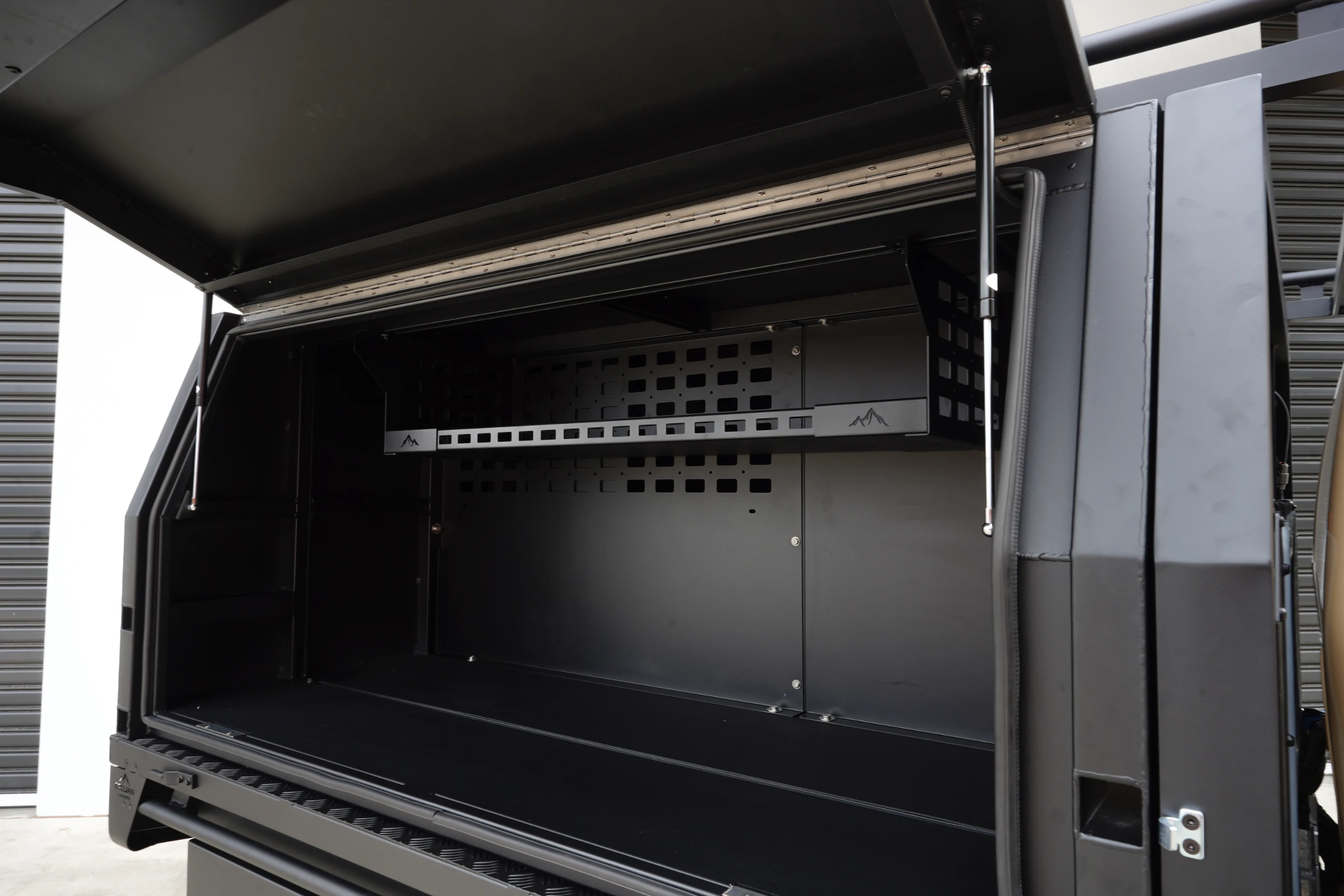

The canopy offers full side access, generous internal volume, and Unistrut internal mounting for drawers, shelves, and accessories.

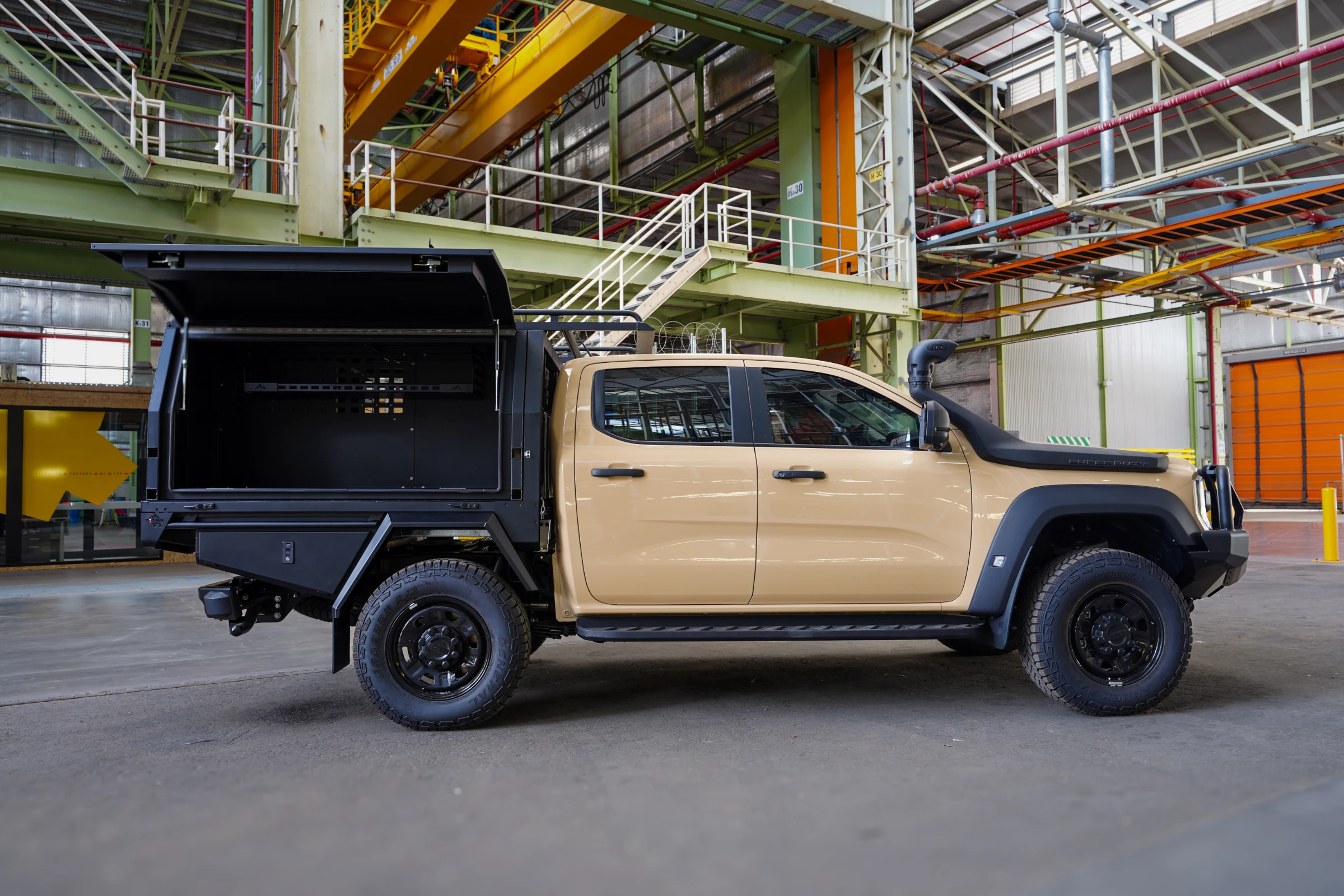

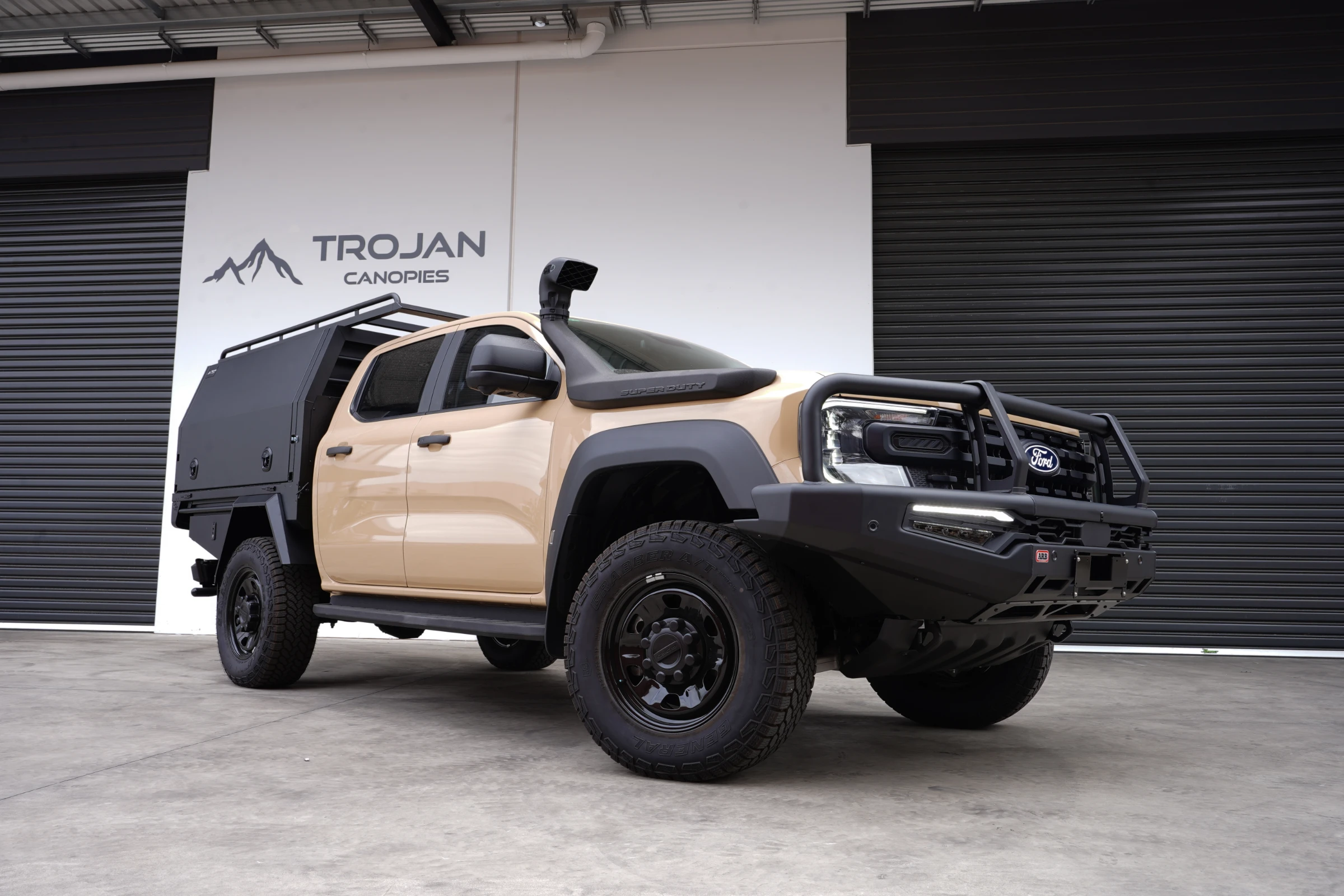

The driver side canopy has been set up for efficient tool and gear storage, making daily access quick and simple.
Included on the driver side:
This layout is ideal for tradies or tourers who want everything visible and easy to reach without unpacking half the canopy.

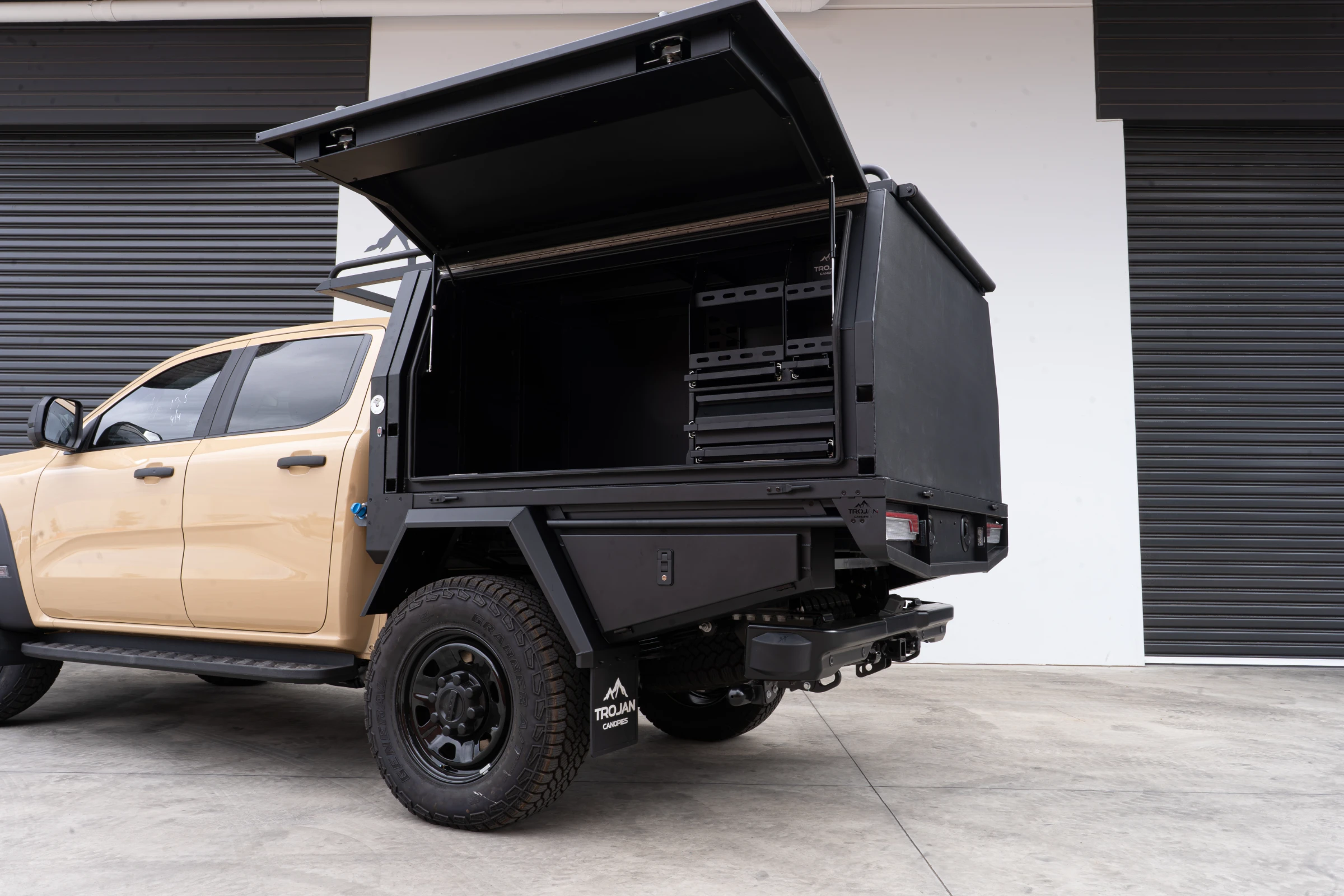

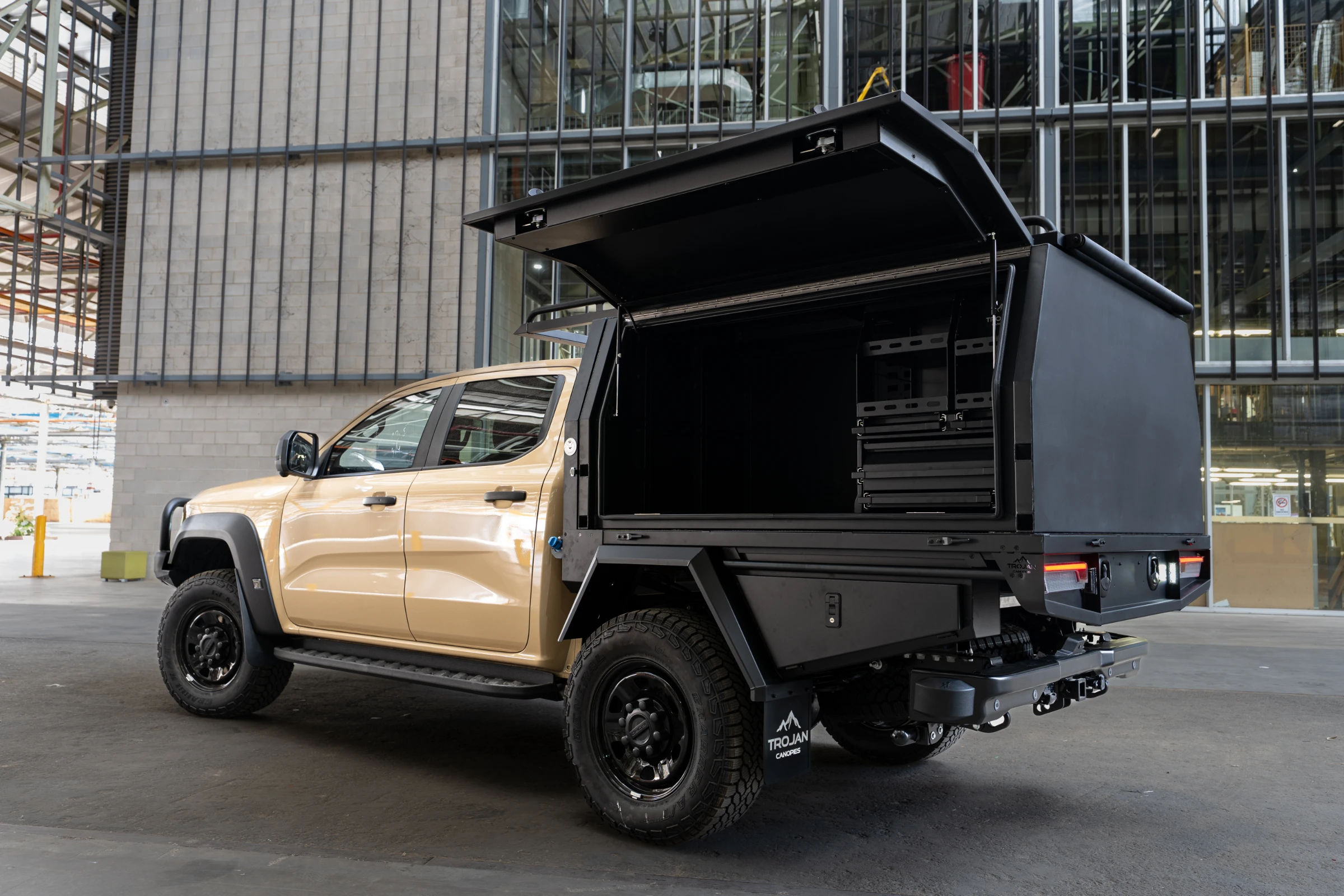

The passenger side canopy is left more open, providing flexible space for larger items, recovery gear, or future accessories.
This open layout allows the owner to adapt the setup over time, whether that means adding a 12v system, drawers, a fridge slide, or dedicated camping storage down the track.
Included on the passenger side:

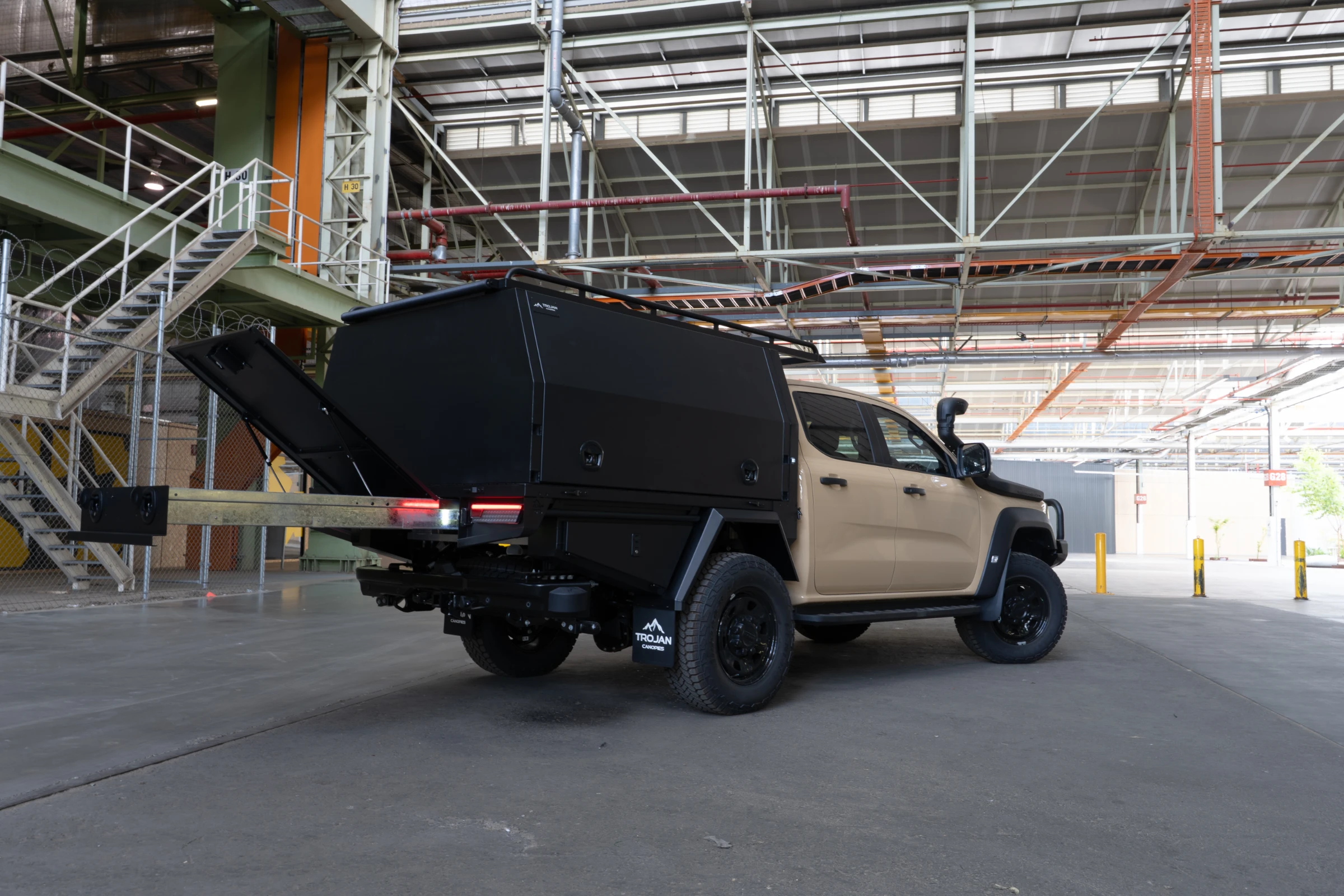

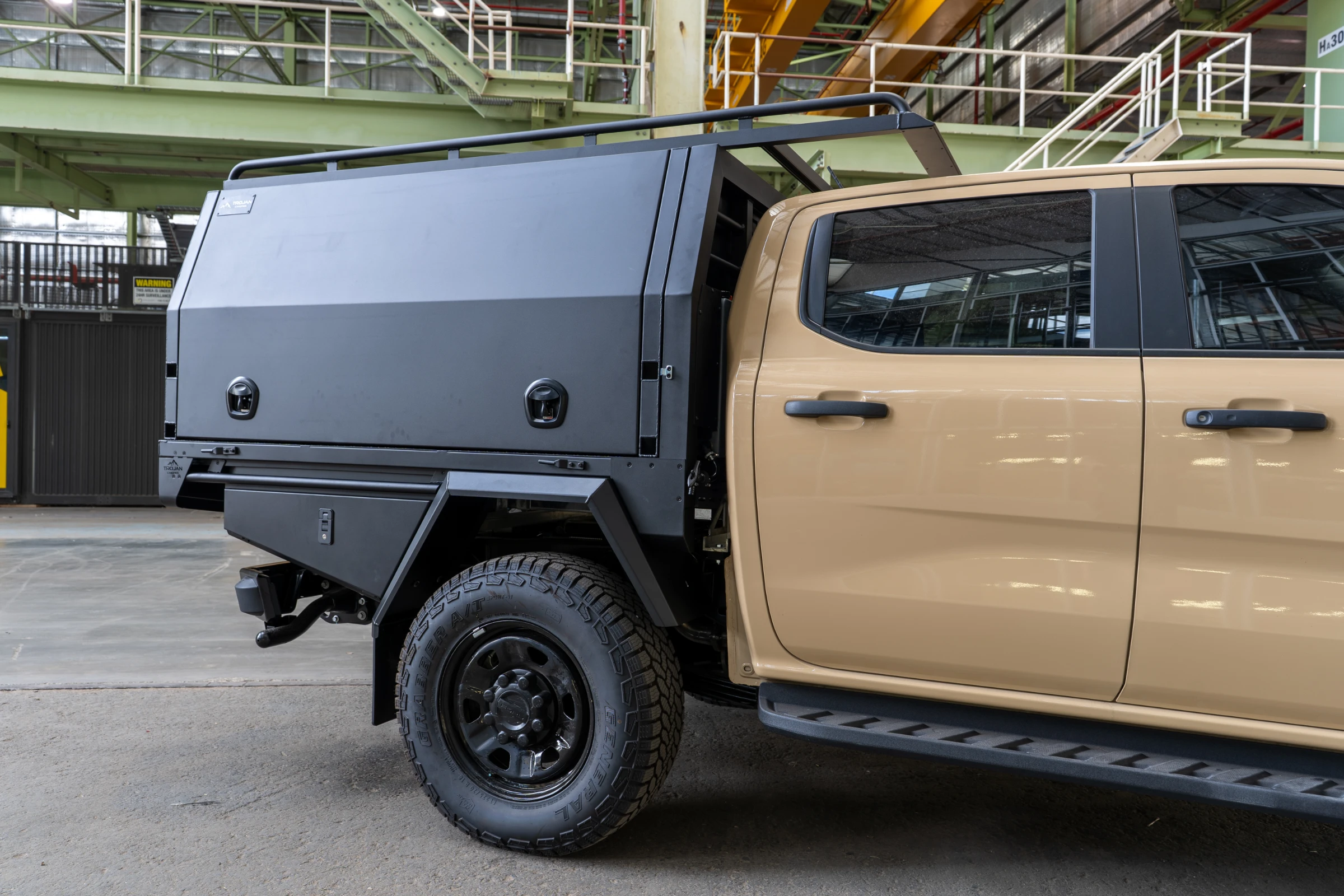

To make the most of every mm of space, this Super Duty has been fitted with both an undertray toolbox and an undertray trundle drawer.
Undertray features:
These undertray options are a favourite for keeping gear out of the canopy while still easily accessible.

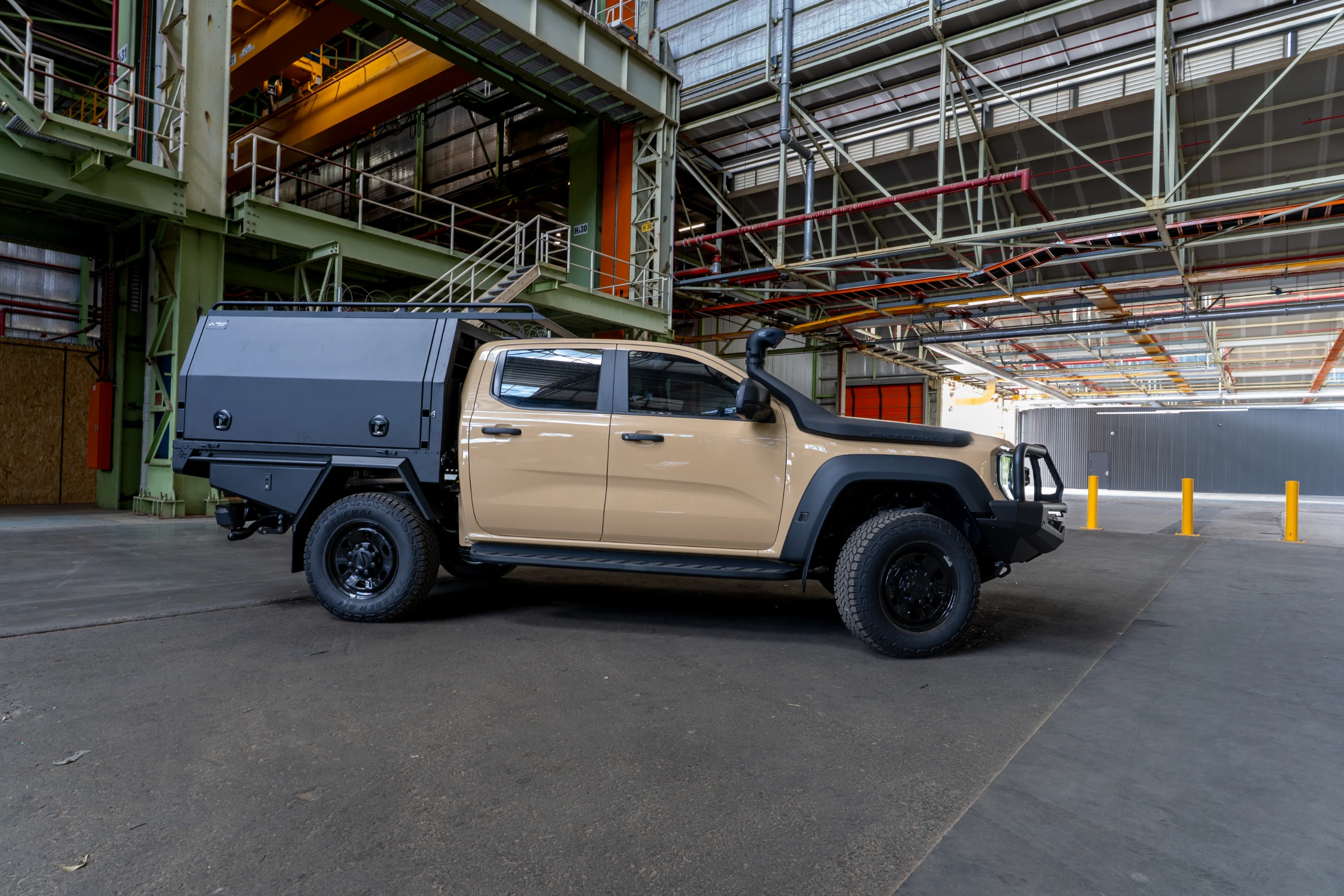

Up top, the canopy is fitted with our tradie roof rack system, ideal for carrying ladders, conduit, or lightweight oversized gear.

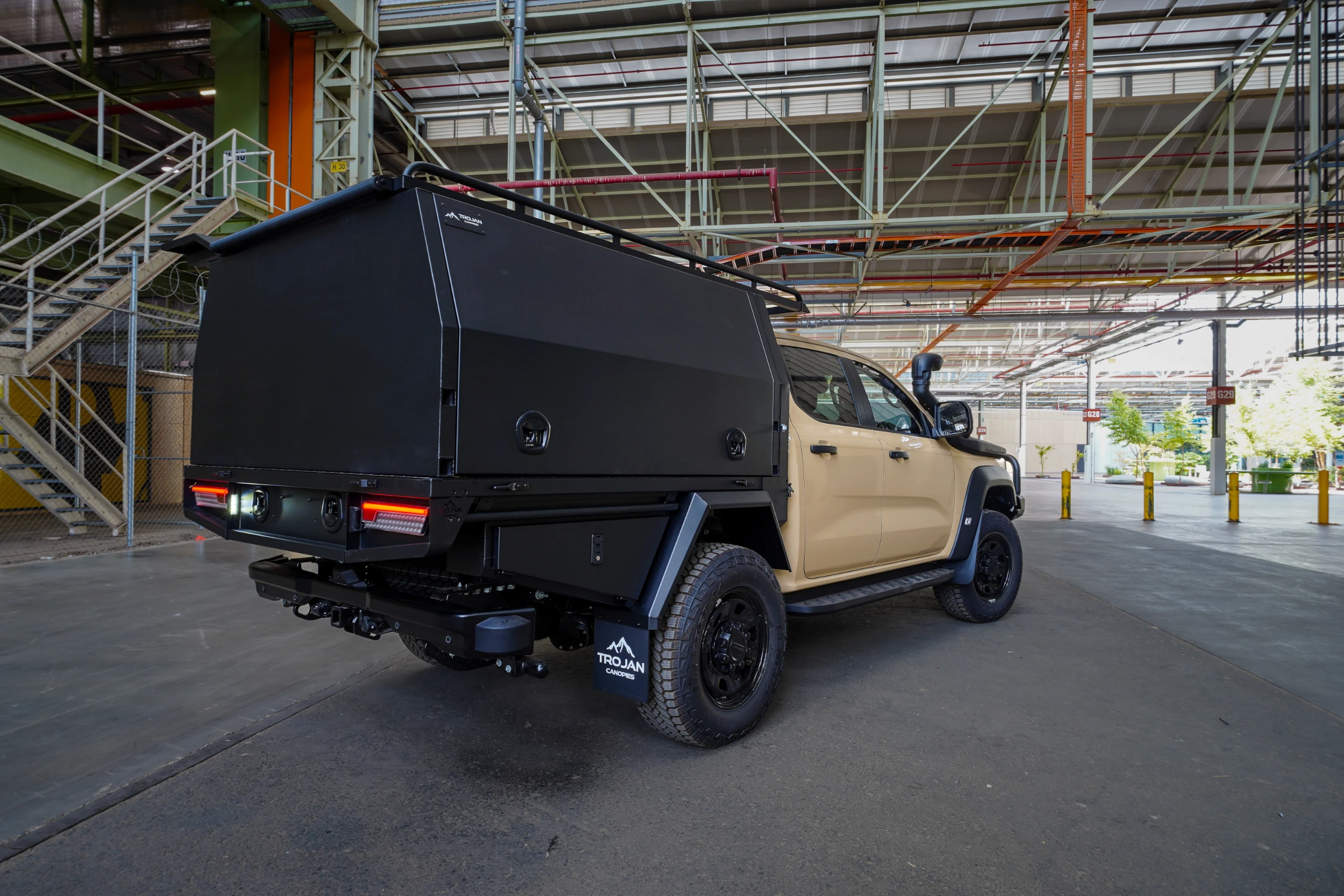

The rack integrates cleanly with the canopy and rear load bar, giving a strong, continuous load carrying solution from front to rear.

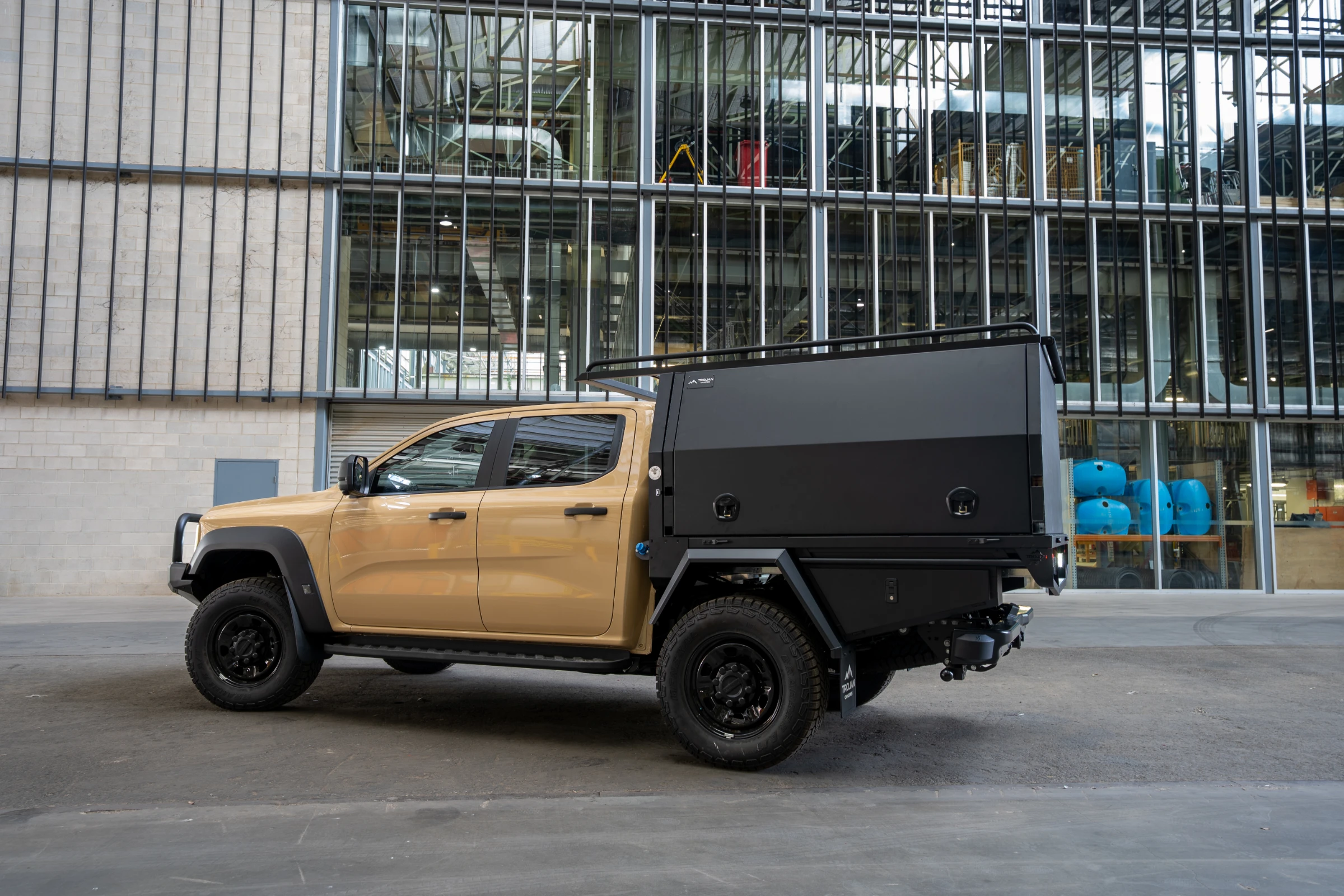

This build also includes an AdBlue relocation bracket, ensuring correct placement and protection once the tray and canopy are installed.
It’s a small detail, but one that is critical for a proper Super Duty fitout and long term reliability.
Every Ranger Super Duty build we do is engineered with payload, strength, and real world use in mind. This Seismic Tan setup is no exception.
Whether it’s destined for hard work, long distance touring, or a mix of both, this tray and canopy package is built to handle it.
If you’re planning a Ford Ranger Super Duty tray or canopy setup, our team can tailor a package to suit how you actually use your vehicle.
From tradie focused layouts to touring ready builds, we’ll help you get it right from day one.
Get in touch with the Trojan team to start your build or build your instant quote today!
